Australian Standards for Fire Doors Explained: A Guide for Sydney Property Owners

Navigating passive fire safety requirements in New South Wales can often feel like wading through complex legal jargon. For commercial facilities managers, strata committees, and residential property owners across Sydney, understanding the Australian standards for fire doors is not just about avoiding council fines; it is a fundamental responsibility to protect human life and structural property.

Fire door assemblies are precision-engineered life safety systems designed to prevent the lateral and vertical spread of fire and toxic smoke. However, a fire door can only perform its vital job if it strictly adheres to national regulations throughout its design, manufacture, installation, and ongoing service life.

This comprehensive guide breaks down the essential fire door regulations enforced across Australia, explaining what Sydney property owners need to know to ensure absolute compliance.

The Core Framework: Standards and Codes Governing Fire Doors

Fire door compliance in Australia is governed by an integrated network of national codes and standards. Understanding how these pieces fit together is the first step toward maintaining certified fire safety barriers.

1. The National Construction Code (NCC)

The National Construction Code (NCC), formerly known as the Building Code of Australia (BCA) defines where fire resistance levels (FRLs) are required in different building classifications. It establishes the performance requirements for passive fire protection depending on the building’s height, occupancy type, and structural risks.

2. AS 1905.1: Construction and Installation of Fire-Resistant Doorsets

AS 1905.1 is the primary manufacturing and installation benchmark for hinged and pivoted fire doorsets. It specifies strict technical guidelines for:

• Fire door leaf construction (including core density and facings).
• Steel frame specifications and anchoring requirements.
• Hardware selections (locksets, latches, door closers, and hinges).
• Allowable clearance gaps around the perimeter (typically 2mm to 4mm along edges).

3. AS 1530.4: Fire-Resistance Tests

Before a fire door prototype can be sold or installed, it must undergo furnace testing under AS 1530.4. This standard subjects the complete doorset (leaf, frame, and hardware) to extreme thermal conditions to establish its official Fire Resistance Level (FRL).

4. AS 1851: Routine Service of Fire Protection Systems and Equipment

Once installed, AS 1851 dictates how fire doors must be periodically inspected, tested, and maintained. It sets clear maintenance schedules to ensure the door remains fully functional throughout its service lifecycle.

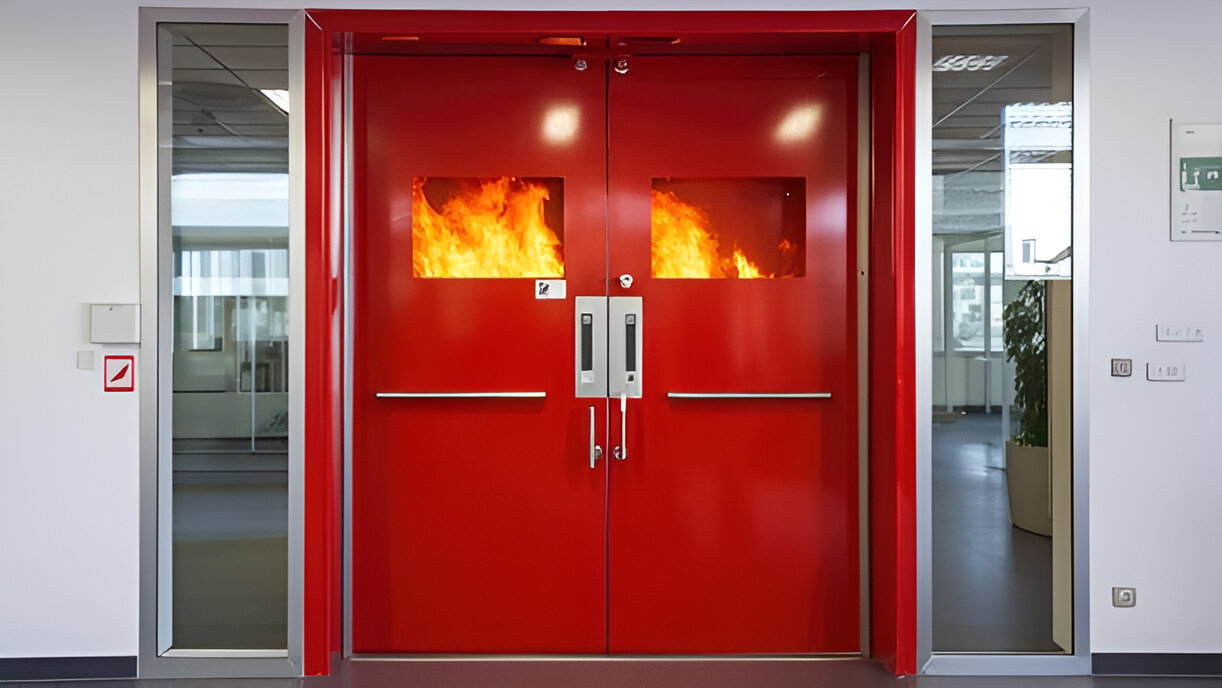

Fire Resistance Levels (FRL) Explained

When reviewing fire safety schedules, you will frequently see a three-part FRL rating expressed in minutes (e.g., /60/30 or /120/120). Under the fire door requirements set out across Australia, FRL ratings measure three criteria:

1. Structural Adequacy: The ability of the overall assembly to remain structurally stable under fire exposure (often non-applicable / for standalone doors).
2. Integrity: The capability of the door to resist flames and hot gases passing through cracks or gaps.
3. Insulation: The door’s ability to limit temperature rise on the non-fire side to prevent thermal radiation from igniting adjacent materials.

For example, a -/60/30 rated fire door maintains fire integrity for 60 minutes and thermal insulation for 30 minutes.

Crucial Compliance Factors for Sydney Properties

Meeting Australian fire door standards requires more than just hanging a fire-rated slab. The entire opening must operate as a certified, fully integrated assembly. Sydney building owners must pay close attention to the following compliance factors:

Mandatory Metal Certification Tags

Every compliant fire door leaf and frame must feature a permanent, legible metal certification tag attached near the hinge edge. This tag displays crucial data, including:

• The manufacturer’s name.
• The tested Fire Resistance Level (FRL).
• Applicable standard (e.g., AS 1905.1).
• The year of manufacture and applicant details.

Painting over, removing, or defacing this metal tag invalidates the door’s certification during annual audits.

Self-Closing and Self-Latching Operation

Under the fire door standards set across Australia, a fire door must self-close and latch securely into its frame from any open position.

Important Compliance Warning: Wedging a fire door open with floor stops, wooden blocks, or unapproved hooks is illegal. If a door must remain open for operational convenience, it must be fitted with an approved electro-magnetic hold-open device linked to the building’s automatic fire detection system.

Unapproved Modifications

Adding aftermarket deadbolts, cat flaps, surface bolts, or non-fire-rated handles creates unapproved penetrations that compromise the door’s internal core. Any non-standard modification instantly voids the door’s AS 1905.1 compliance.

Maintenance Schedules: How Often Must Fire Doors Be Inspected?

To comply with NSW Environmental Planning and Assessment regulations and sign off on your Annual Fire Safety Statement (AFSS), routine inspection schedules under AS 1851 must be maintained:

• 6-Monthly Inspections: Passive fire door assemblies in commercial and multi-residential settings require detailed checks every six months. Inspectors check frame gaps, drop-seal operation, door closer tension, latching performance, and tag legibility.
• Annual Condition Reports: Detailed records must be logged into an on-site service register to confirm all defects have been rectified.

Failing to maintain routine servicing under AS 1851 can lead to heavy fines from local Sydney councils, prohibition notices from Fire and Rescue NSW, and voided property insurance policies.

Modernising Non-Compliant Doors with Precision Profiling

When older Sydney properties fail inspection due to warped frames, sagging leaves, or degraded timber cores, replacing the door leaf while maintaining regulatory compliance used to be a messy, labour-intensive challenge.

Traditional replacement methods required on-site trimming, chiselling, and cutting, a process that creates excessive dust, noise, and potential clearance errors that threaten AS 1905.1 compliance.

At BF Door Manufacturing in Brookvale, we solve this through advanced digital CNC door profiling:

1. Digital On-Site Scanning: Our technicians perform precision 2D scans of the existing opening to map frame distortions, hinge positions, and latch locations down to the millimetre.
2. Factory CNC Precision: The replacement leaf is cut using precision workshop machinery, including all lock pockets and hinge pre-cuts.
3. Clean, Fast Installation: Doors arrive on-site fully prepared to hang, eliminating noisy cutting, preserving intumescent seals, and guaranteeing perfect gap clearances every time.
